Product Description

We take immense pleasure to introduce ourselves as a trusted organization engaged in offering Master Instruments Services. A gauge that has regular contact with workpieces will usually need more frequent calibrations than the master gauges. Our accredited labs perform calibrations for gauges according to the schedules their duties and applications demand. We offer these Master Instruments Services at affordable rates.

"We Are Mainly Dealing In Maharashtra"

Features:

Rendered by skilled manpower
Use of modern technology
Timely execution

List of Reference Master Equipments for Electrotechnical Parameter: -

Sr No	Equipment	Range
Reference instruments - Sources

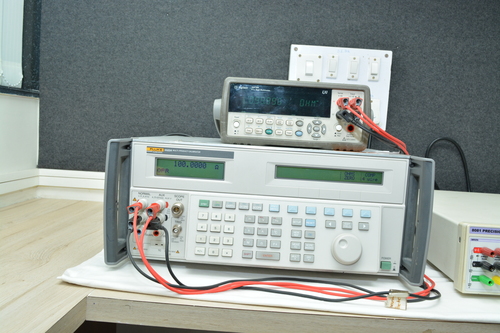

1	Multifunction Calibrator and Current Coil 1000 A -Fluke 5522A- 11ppm accuracy suitable for calibration of 6 1/2 digit Multimeters	AC/DC Voltage & Current, Resistance, Frequency, Capacitance, Power, Power Factor
2	Portable Multifunction Calibrator with external adapter for 1000 Amp and Thermocouple simulation- Transmille 3050, 50ppm Accuracy	AC/DC Voltage & Current, R©sistance, Frequency, Capacitance, Power, Power Factor

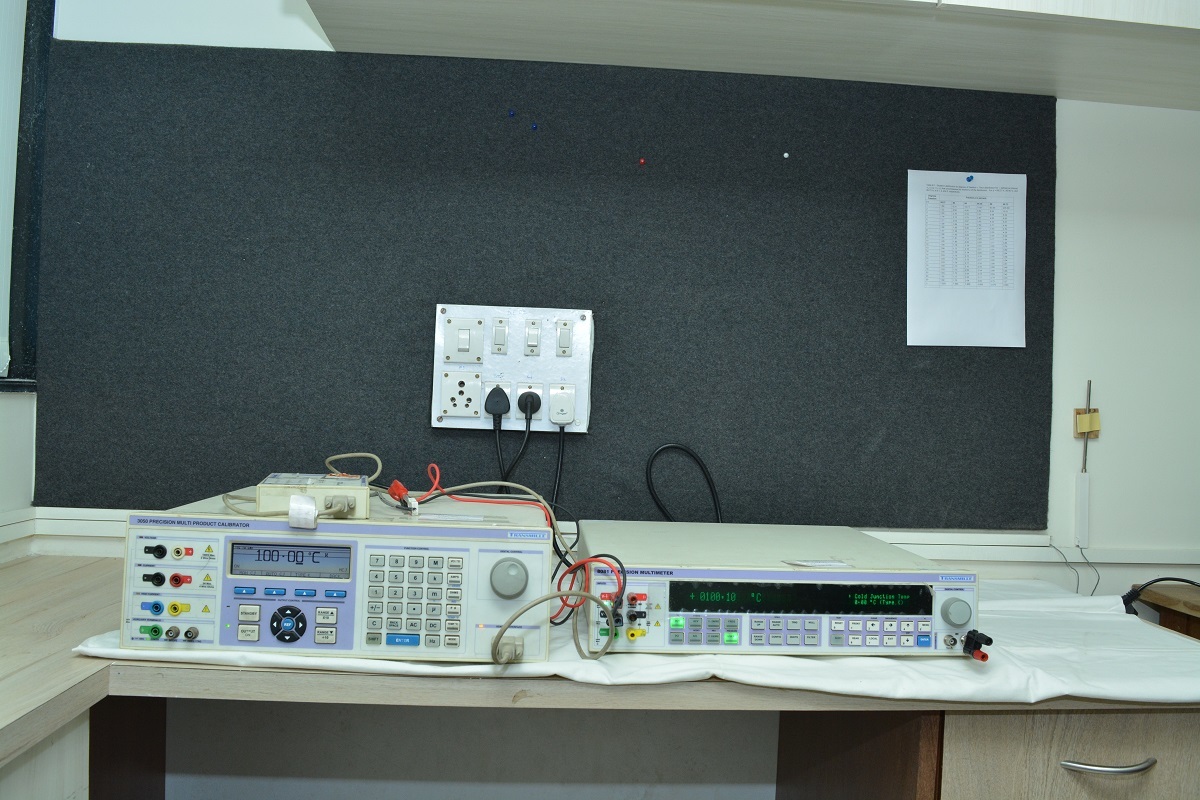

3	Multifunction Process Calibrator	RTD/Thermocouple/Resistance/Voltage & Current simulation and measure

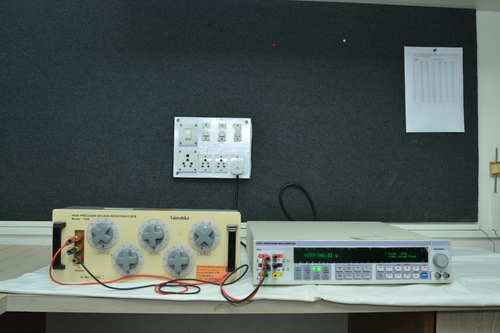

4	High Resistance Decade Box-	1k© to 100 G©
5	Decade micro Ohm Resistance box	10m© to 1 k©
6	Current source 2000A with control panel for CT calibration	CT ratio up to 2000Amp
7	Frequency generator	1 Hz to 1 GHz
8	High Voltage source DC	40 kV DC
9	High Voltage source AC	10 kV AC
10	EMI / EMC Test System- EMC generator	EFT and Surge test facility
11	Capacitance and Inductance decade box
Reference instruments- Measuring Instruments
1	8 digit Digital Multimeter- 4ppm Accuracy	AC/DC Voltage & Current, R©sistance 1TOhm, Frequency, RTD and Thermocouple measurement
2	6 digit Digital Multimeters- Agilent 34410A and 34401A	AC/DC Voltage & Current, R©sistance, Frequency, Temperature
3	Power Analyzer- Voltech	Power, Energy, Power Factor
4	HV probe AC/DC	40 kV
5	Digital Osciloscope 500MHz	EFT and surge testing
6	Timer	1s LC
7	Current Clamp 2000A AC/DC	AC and DC high Current
8	Standard CT 2000A
